テープシーダーって

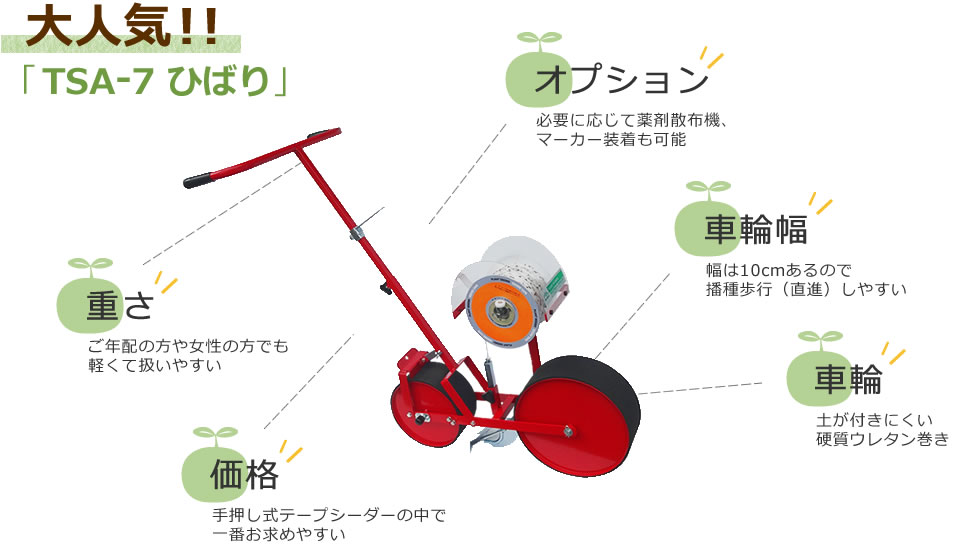

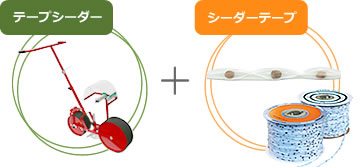

シーダーテープという、種が入っているテープを簡単に畑にまく機械をテープシーダーと言います。今回は手押し式のテープシーダーで大人気の「TSA-7 ひばり」をご紹介させて頂きます！

日本プラントシーダー株式会社

北見営業所

〒090-0056　北海道北見市卸町3-6-4

TEL：0157-36-6206　FAX：0157-36-7622

札幌出張所

〒003-0021　北海道札幌市白石区栄通10-7-22

TEL：011-598-1914　FAX：011-598-1915

東北営業所

〒039-2246　青森県八戸市桔梗野工業団地2-10-5

TEL：0178-38-3328　FAX：0178-38-3329

関東営業所

〒103-0023　東京都中央区日本橋本町4-9-2

TEL：03-5623-1183　FAX：03-5623-1187

大阪営業所

〒590-0521　大阪府泉南市樽井2-3-9

TEL：072-480-0128　FAX：072-484-3950

九州営業所

〒861-1113　熊本県合志市栄3415-25

TEL：096-247-0120　FAX：096-247-0122

footerimage

HOME
私たちの思い
シーダー農法とは？
製品紹介
導入事例
農業を応援！
カタログ・取扱説明書

お知らせ
会社案内
よくある質問
お問い合わせ
プライバシーポリシー
サイトマップ
English

Holceron

Symbol	HS(HS)
Name	Holceron
Material	PVA (polyvinyl alcohol) Film
Characteristics	Water Soluble
Feature	Dissolving in moist soil, so that any seed can germinate. You can choose this material for the wide range of crops including both direct-seeding and transe-plantation.
Cautions	This might go insoluble if it touched something storng acid or alkari. To avoid dissolve and stick to each other, please refrain from using in case of rain or fog.
Main Applications	Daikon, Burdock, Turnip, Onion, Cabbage, Tomato, Corn, Bean, etc.

“Holceron”is our trademark registered in Japan

A-10　　P-10

	Outside Diameter	Soil Covering Device	Application
D-8	8mm	○	Carrot(non-coated seed), Turnip, Brassica Leaf Vegetables
PD-8	8mm	×	Carrot(non-coated seed), Turnip, Brassica Leaf Vegetables
A-10	10mm	○	Radish, Burdock, Spinach, Carrot(coated), Onion
P-10	10mm	×	Radish, Burdock, Spinach, Carrot(coated), Onion
A-13	13mm	○	Radish(coated), Sunflower
P-13	13mm	×	Radish(coated), Sunflower
A-16	16mm	○	Table Corn, Propagule
P-25	25mm	×	Propagule

※ Application is based on a typical seed size. Irregular size of seeds might make it unavailable.

AKEMARUKUN TR-FLat

Seeder Mulcher “AKEMARUKUN”Flat for Tractor

【Feature】・This innovative seeder mulcher, punches the seed-point of no-hole mulch sheet while sowing. ・To add optional unit, 3 lanes available
Model	SDM-T35411F
Adaptable Sheet Width	95～135cm
Number of Lanes	2(～3)
Lane Width	above 35cm
Seed Interval	above 18cm
Application	Japanese radish (daikon), table corn
Length/Width/Height	110×160×100cm
Weight	70kg
Furrow Pattern	Flat
Ridger	Available（option）
Pesticide Spreader	Available（option)

“Seeder Mulcher”、“AKEMARUKUN”are our trademarks registered in Japan

TEM-4WD2

Engine-Powered Tape Seeder TEM-4WD2

【Feature】
・Self-propelled tape seeder loaded with a small 4cycle-engine
・4 wheel drive contributing good performance, compact enough to be used easily
・Making sharp turns, suitable for greenhouse works
・From 2 to 6 lanes of varieties are available.
・With a specific pesticide spreader, sowing and spreading to be done simultaneously

Model

TEM-4WD2

Length/Width/Height

850×800×950mm

Weight

22kg

Engine

Honda GＸ25

Air-cooled 4-stroke single sylinder gasoline engine (OHC)

Displacement

25.0cc

Horse Power (MAX)

0.81kw（1.1PS）／7000rpm

Fuel

Motor Gasoline

Fuel Capacity

0.55L

Clutch System

Centrifugal Clutch

Speed

2.6km／h／7000rpm

Range of Lane Width

190～600mm

Number of Lanes

Meshron

Symbol	MR(MR)
Name	Meshron
Material	Nonwoven made from Cotton Linter 100%
Characteristics	Bio-Degradable
Feature	Seeds could germinate in Seeder Tape. In dry soil, Meshron should be stabler in germination than Holceron. Even in high temperature and moisture, the tape of Meshron won’t be extended to contribute to your workability and preservability.
Cautions	Please refrain from crops of bigger cotyledon. Long time soakage in water is available.
Main Applications	Spinach, Carrot, Chinese Cabbage, Onion, Rice, Propagule, Corn, etc.

“Meshron”is our trademark registered in Japan

Holceron P

Symbol	HSP(HP)
Name	Holceron P
Material	Rayon Pulp
Characteristics	Bio-Degradable
Feature	Degrading in 2 to 3 weeks, even in high temperature and moisture, this material can make you operate easily. germination and preservability.
Cautions	Please pay attention to lack of moisture, refrain from dry or cloddy soil.
Main Applications	Burdock, Daikon, Carrot, Spinach, Welsh Onion, etc.

“Holceron”is our trademark registered in Japan

Seed Counter RC-2501

【Feature】・This counter enables to count any preset number of seeds. ・Rapid and exact packing would be available. ・Counting 1-999,999 grains of seeds ・Being so compact, it could work everywhere you need. ・This counter is not suitable for either long and narrow seeds (ex. cosmos) or fluffy seeds (ex. carrot), both bigger seed (ex. corn, pumpkin) and smaller seeds (ex. turnip) are countable though.
Type	RC-2501
Range of Counting	1～999,999 grains （A margin of error may be 0～3 grains）
Width/Depth/Height	37.5×34.5×27cm
Weight	24kg
Power Supply	AC100V(Single Phase)50,60Hz(3A)

Seeder machine SMV-1J

【Feature】・High-efficiency seeder machine improved so that everyone could make more precise seeder tape in less labor than before one. ・Adapting the digital typing system, improved in operation efficiency. Conveying speed of seeds being synchronized with tape speed, the interval should not be disorderd by the irregular rotation in operation. Also adapting stepping-motor for driver, we improved it in the precision of manufacturing. ・Additional function of showing messages must contribute to efficiency. In case of finishing up, thread cut, seeds shortage and tape shortage, it would automatically stop running and show what the problem was. ・Adapting the latest vacuum pump, noise has been greatly decreased.
Model	SMV-1J
Seed Lack Sensor for SMV-1J	Vacuum Drum
Width/Depth/Height	65×57×146cm
Weight	Machine 50kg Cubicle 60kg
Range of Temperture	0～+40℃
Power Supply	AC100V (single-phase)
Electricity Consumption	Machine 4A Cubicle 7A
Working Speed	Up to 2000m／h
Adjustment	Changing a specific stainless belt, any interval and any number of seeds are available.

Seed Lack Sensor for SMV-1J

【Feature】・This is a sensor for lack of seed with High-quality image sensor . ・Anyone can use it easily because it detects lack of seed with high accuracy without the need for fine adjustment. ・This device can sense seeds of above 1mm in its outside diameter. ・Both Holceron and Meshron are available. ・SMV-1J would automatically stop running and inform you with buzzer and lamp, if it sensed absence of seeds.
Application	SMV-1J
Type of sensing	Image sensor (CMOS color)
Width/Depth/Height	17×18×10cm（Control Unit）
Weight	1.0kg（Control Unit）
Power Supply	AC100V(Single Phase)・Under 10W

TSA-7

Hand-Pushing Tape Seeder TSA-7

【Feature】・Light weight and compact popular model ・For all vegetables（radish, burdock, carrot, spinach, etc.）
Model	TSA-7
Number of Lane	1
Wheel Width	100mm
Marker	Available（option）
Pesticide Spreader	Available（option）

YRJ-8030
(Continuous Fiber Bundle)

Aplicable Machine	SMV-1J
Name	YRJ-8030
Material	Rayon
Specification	8000m／roll
Number/Ctn	30rolls (=240,000m)

YJ-5048(Twisted Yarn)

Aplicable Machine	SMV-1J
Name	YJ-5048
Material	Cotton
Specification	5000m／roll
Number/Ctn	48rolls (=240,000m)

Plastic Reel

Symbol	LP
Disk	ABS Resin (recycled)
Core	ABS Resin (recycled)
Number/Ctn	50 reels

Paper Reel(S)

Symbol	PPS
Disk	Paper
Core	ABS Resin (recycled)
Number/Ctn	100 reels

Water-Resistant
Paper Reel

Symbol	OP(L)
Disk	Water Resistant Paper
Core	ABS Resin (recycled)
Number/Ctn	100 reels

Paper Reel

Symbol	PP(L)
Disk	Paper
Core	ABS Resin (recycled)
Number/Ctn	100 reels

Flat Seeder Tape

・We provide this as preorderd products for promotional giveaways.

Tape Seeder for Kitchen Garden

・Tape Seeder for Kitchen Garden

・Lightweight 1-wheel type which you are easy-to-use.

Seeder Tape for Kitchen Garden

・Subdivided Seeder Tape for Kitchen Garden

・We can provide any specification (interval & number of seeds) of Seeder Tape. Please feel free to ask us.

TK-12

Type	TK-12
Number of Lane	2
Hopper Capacity	1.6L
Applicable Pesticide	Granule
Others	Including a mechanism which adjust the rate of spreading.
Application	TSB-7,TSB-8ST,TRB-8ST,TEM-4WD2,etc.

TK-1

Type	TK-1
Number of Lane	1
Hopper Capacity	1.6L
Applicable Pesticide	Granule
Others	Including a mechanism which adjust the rate of spreading.
Application	TSA-7,TSA-8ST,TRA-8ST,etc.

Seed Belt for SMV-1J

【Feature】
・Seed Belt for SMV-1J
・We could provide the most suitable seed belt according to kind of seeds, interval and number of seeds. Please feel free to ask us.

Seeder Tape

Applicable Seeds
Roots	Daikon (Radish), Burdock, Carrot, Onion, Welsh Onion, Turnip
Leaves	Spinach, Cabbage, Chinese Cabbage, Lettuce, Broccoli, Cauliflower and other Brassica Leaves
Fruits	Water Melon, Melon, Tomato, Cucumber, Eggplant, Paprika
Others	Flower, Corn, Propagule, Rice, Bean, Herb, etc.

TRA-8ST

Precise Tape Seeder for Tractor TRA-8ST

【Feature】・Suitable for crops aquires precise shallow sowing depth（carot, stock, etc)
Model	TRA-8ST
Application	For Tractor
Number of Lanes	1
Wheel Width	100mm
Minimum Lane Width	220mm
Pesticide Spreader	Available（option）

TRA-7

Tape Seeder for Tractor TRA-7X

Model	TRA-7X
Application	For Tractor
Number of Width	2～5
Minimum Lane Width	320mm
Pesticide Spreader	Available（option）

TSJ-7BT

Electric Tape Seeder TSJ-7BT

【Feature】・Electric self-propelled model loaded with battery ・12 lanes sown at once ・Without exhaust gas, suitable for greenhouse works, also silent and safe ※Battery is not included.
Model	TSJ-7BT
Number of Lane	2～12
Wheel Width	400mm
Minimum Lane Width	30mm
Adaptable Battery	12V
Speed	1Km/h

TSD-7

Hand-Pushing Tape Seeder TSD-7

【Feature】・Most suitable for multi-lanes sowing of turnip or spinach ・Up to ４ lanes sown at once
Model	TSD-7
Number of Lanes	4
Wheel Width	500mm
Minimum Lane Width	100mm

TSB-7

Hand-Pushing Tape Seeder TSB-7

【Feature】・Light weight and friendly 2 lanes model ・Because of lightness, also suitable for 1 lane use ・For all vegetables（radish, burdock, carrot, spinach, etc.）
Model	TSB-7
Number of Lane	2
Wheel Width	200mm
Range of Lane Width	120-170mm
Marker	Available（option）
Pesticide Spreader	Available（option）

TSA-8ST

Hand-Pushing Precise Tape Seeder TSA-8ST

【Feature】・Suitable for crops aquires precise shallow sowing depth（carot, stock, etc)
Model	TSA-8ST
Number of Lane	1
Wheel Width	100mm
Marker	Available（option）
Pesticide Spreader	Available（option）
